Velleman Mini USB Oscilloscope for Windows PCs - $76 - (Swanton, VT)

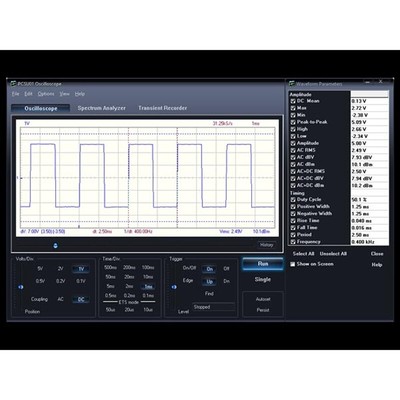

Description Velleman Mini USB Oscilloscope for Windows PCs Three separate functions: digital oscilloscope, spectrum analyzer and transient recorder Readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency The USB cable is included Turn your computer into an oscilloscope with the Velleman PCSU01: Velleman Mini USB Oscilloscope for Windows PCs is quick and easy to use. Just plug it into your Windows XP, Vista, 7, 8 and 10 computer via USB and install the custom software to use your PC as an oscilloscope. This pocket-sized scope includes test leads and has three separate functions — oscilloscope, spectrum analyzer and transient recorder. In the oscilloscope module, use the PCSU01 as a digital storage oscilloscope to analyze voltage over time and display the data in waveform graphs. The spectrum analyzer allows you to visualize the frequency spectrum of a signal using FFT (Fast Fourier Transform) analysis. Use the transient recorder to record events and log slow changing processes such as temperature and battery charge cycles.Specifications Input Coupling: DC and AC Resolution: 8 bit Minimum System Requirements: Windows XP, Vista, 7, 8 or 10 Oscilloscope Bandwidth: DC to 200 kHz ± 3 dB Input Impedance: 100 kOhm/20 pF Maximum Input Voltage: 30 V (AC + DC) Time Base: 10 µs to 500 ms per division Input Range: 100 mV to 5 V per division Input Sensitivity: 3 mV display resolution Readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency Record Length: 1k samples Sampling Frequency: 62.5 Hz to 1.5 MHz Pre-Trigger Function: 0.1 ms/div - 500 ms/div ranges Persistence Options: Color grade - variable and infinite Spectrum Analyzer Frequency Range: 0, 150 Hz to 75 kHz Operating Principle: FFT - Fast Fourier Transform FFT Resolution: 512 lines Transient Recorder Timescale: 20 ms/div to 2000 s/div Maximum Recording Time: 9.4 h/screen Maximum Number of Samples: 100/s Minimum Number of Samples: 1 sample per 20 s What's Included 1 x Velleman Mini USB Oscilloscope for Window…
