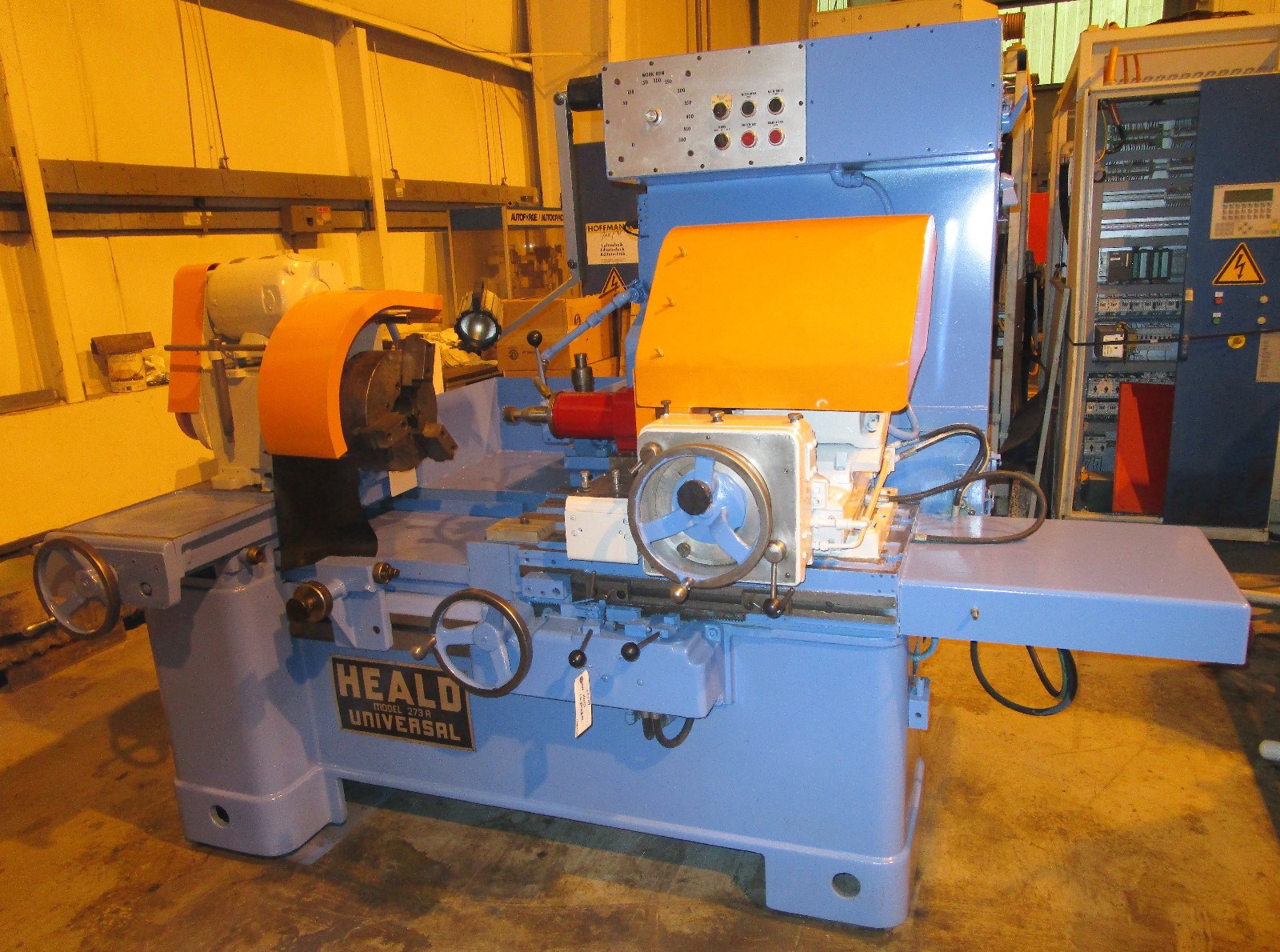

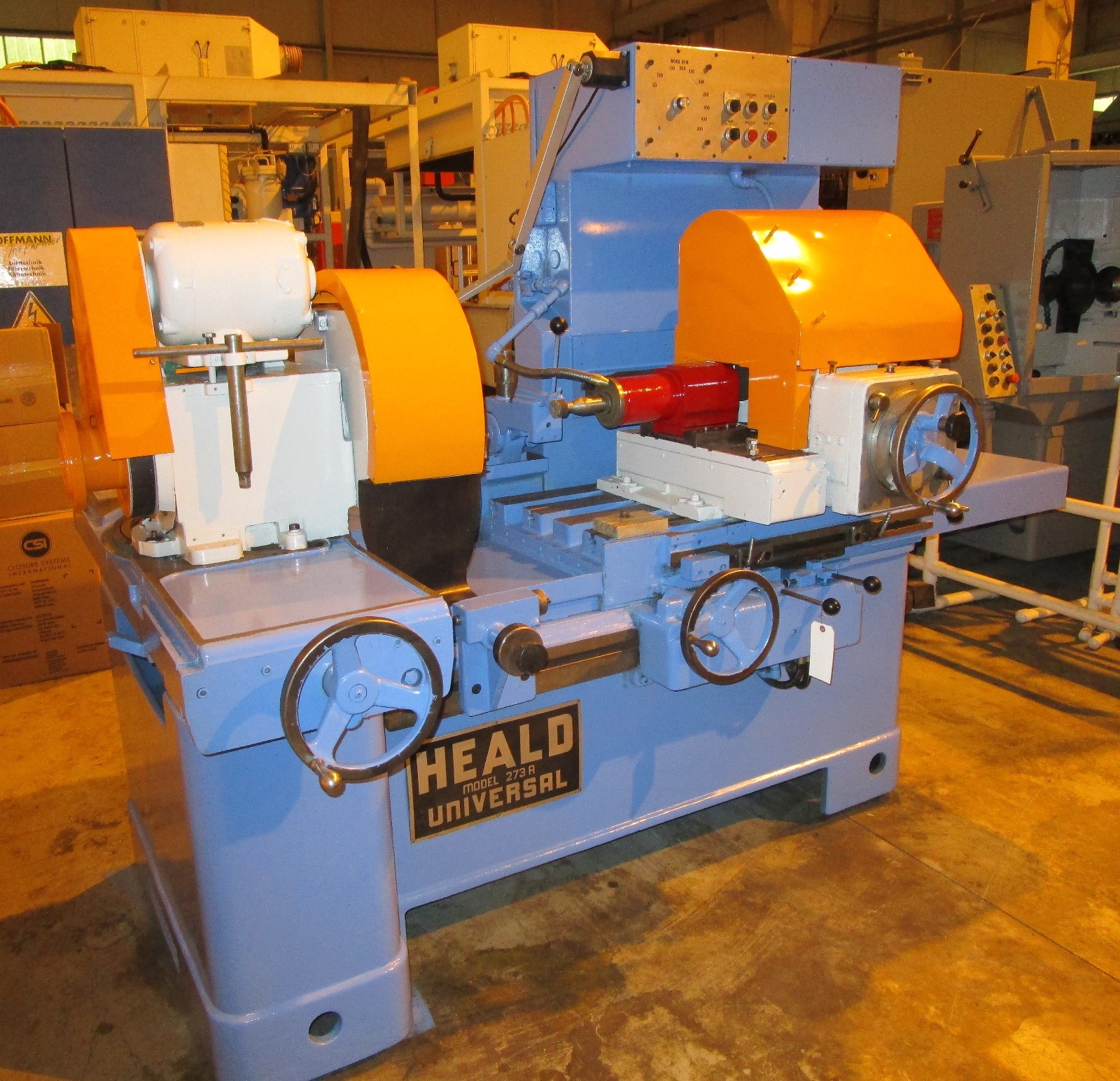

273A HEALD "UNIVERSAL" INTERNAL GRINDER W/RED HEAD - #28589 - $14,500 - (Cincinnati, OH)
#273A HEALD "UNIVERSAL" INTERNAL GRINDER - #28589 SERIAL NO 41023, MODEL 273A, SERIES "UNIVERSAL" To View Video:https://youtu.be/Jf6l3Mn3WTY EQUIPPED WITH: HEALD "RED-HEAD" GRINDING SPINDLE FACE GRINDING ATTACHMENT (4-POSITION TURRET TYPE) GRINDING WHEEL DRESSER COOLANT SYSTEM (TANK & PUMP) CATALOG SPECIFICATIONS: SWING INSIDE COOLANT SPLASH GUARD 20" SWING W/WORKHEAD @ 90-DEGREES 13" BORE LENGTH GROUND, MAXIMUM 16" GRINDING STROKE, MAXIMUM 16" TABLE LONGITUDINAL TRAVEL 20" WHEELHEAD CROSS-SLIDE TRAVEL 1.5" WORKHEAD-SLIDE TRAVEL, POSITIONING 17.5" WORKHEAD SWIVEL ANGLE, MAXIMUM 90-DEGREES WORKHEAD SPINDLE SPEEDS, RANGE 0 TO 500 RPM INTERNAL GRINDING SPINDLE SPEEDS RPM GRINDING TABLE SPEEDS, INFINITE 0 TO 18 FPM GRINDING SPINDLE MOTOR, HORSEPOWER 5 HP/3500 RPM WORKHEAD CHUCK MOTOR, HORSEPOWER 1.5 HP WORKHEAD CHUCK MOTOR, RPM 0 TO 3600 RPM ELECTRICAL SYSTEM 220-440/3/60 OVERALL DIMENSIONS, W X D 8'0" X 7'7" WEIGHT, APPROXIMATELY 6200 LBS PRICE: F.O.B. OUR WAREHOUSE ..........$14,500.00ALL MACHINE/EQUIPMENT ARE SUBJECT TO PRIOR SELL
