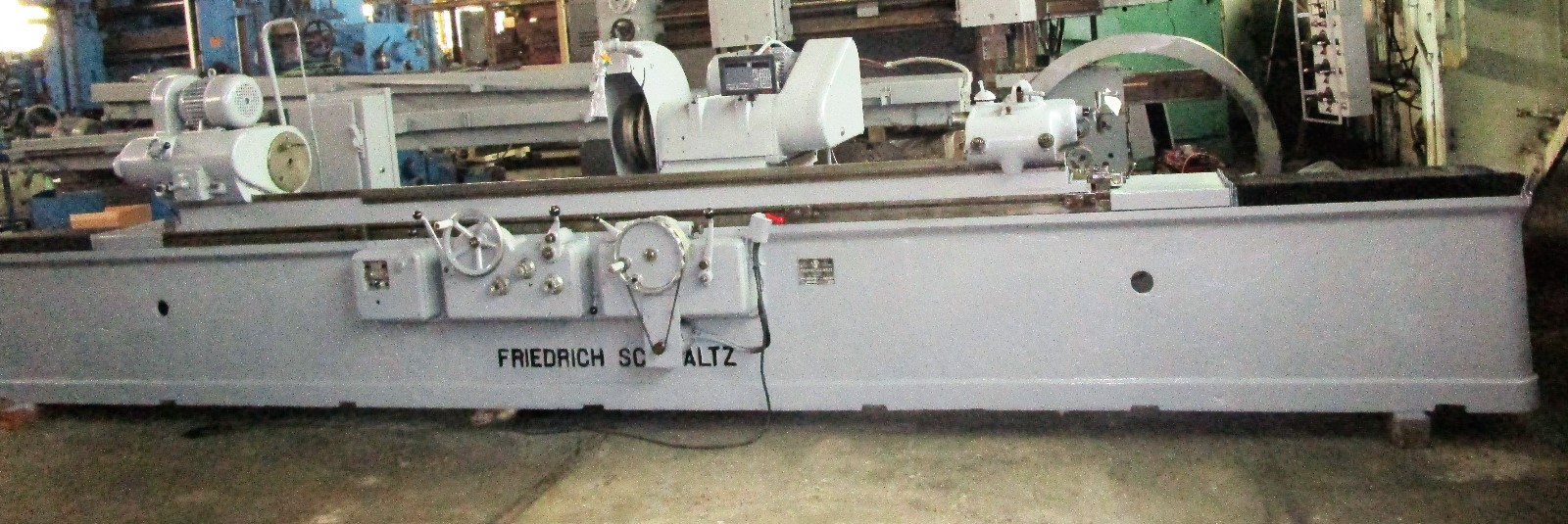

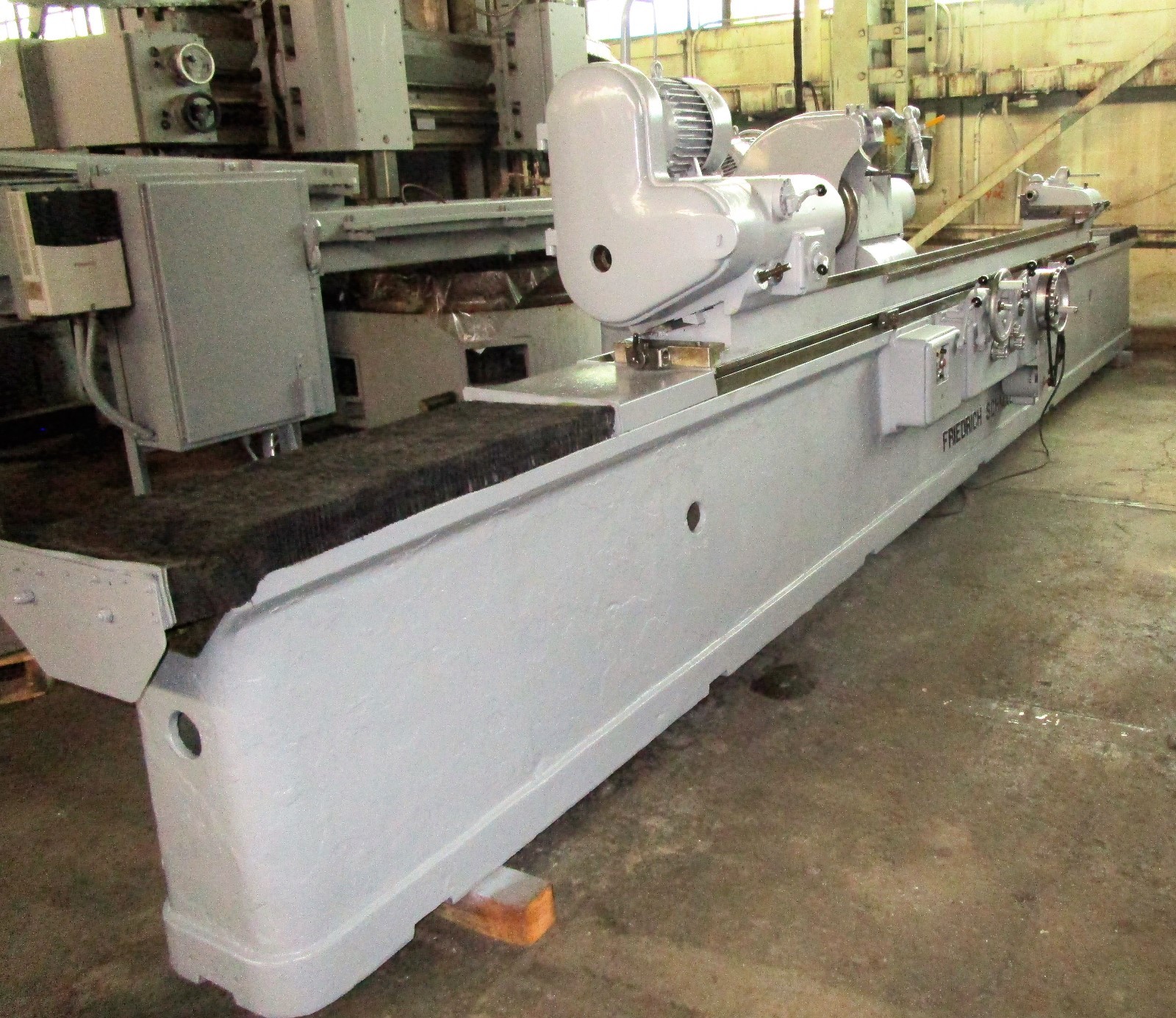

16" x 120" FRIEDRICH SCHMALTZ PLAIN HYDRAULIC CYLINDRICAL GRINDER - #28585 - $24,500 - (Cincinnati, OH)

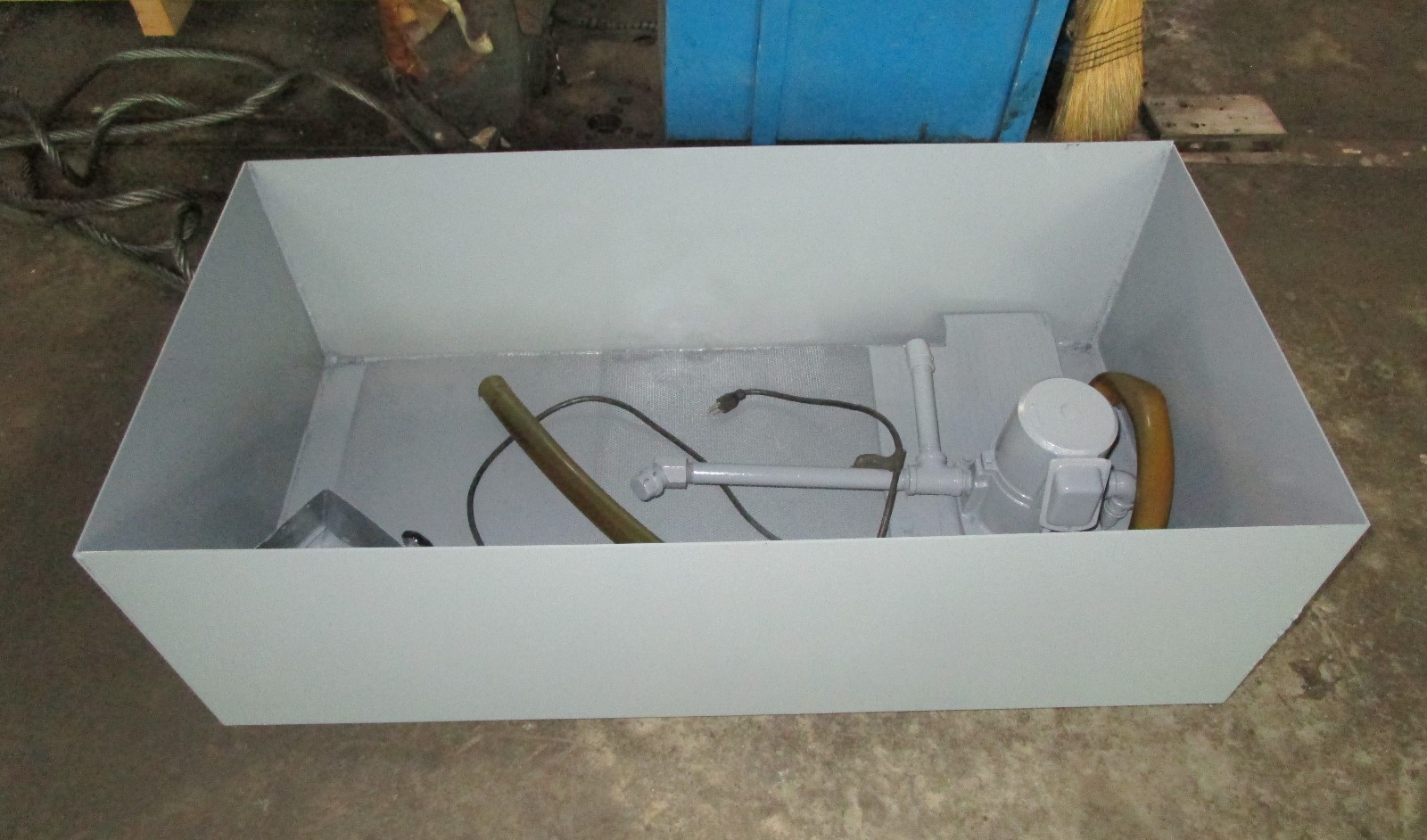

16" X 120" FRIEDRICH SCHMALTZ PLAIN HYDRAULIC CYLINDRICAL GRINDER SERIAL NO 29589/6, MODEL R4-3000, EQUIPPED WITH: NEWALL DP700 DIGITAL READOUTS HYDRAULIC LONGITUDINAL TABLE FEED (2) TABLE MOUNTED WHEEL DRESSERS (1) WORK SUPPORT - EXTRA WHEELS & HUBS COOLANT SYSTEM (TANK & PUMP) CATALOG SPECIFICATIONS: GRINDING DIAMETER, MAXIMUM 16" DISTANCE BETWEEN CENTERS, NOMINAL 120" GRINDING WHEEL DIAMETER, STANDARD 30" GRINDING WHEEL WIDTH, STANDARD 2.5" GRINDING WHEEL WIDTH, MAXIMUM 7" GRINDING WHEEL HOLE DIAMETER 12" WEIGHT WORKPIECE, MAXIMUM 2200 LBS TABLE LONGITUDINAL FEEDS, RANGE 2 TO 236 IPM WORKHEAD SPINDLE SPEEDS, RANGE 18 TO 250 RPM GRINDING WHEELHEAD SPINDLE MOTOR 15 HP/1760 RPM ELECTRICAL SYSTEM 230-460/3/60 OVERALL DIMENSIONS, L X D 276" X 82" OVERALL HEIGHT 60" WEIGHT, APPROXIMATELY 18000 LBS PRICE: F.O.B. OUR WAREHOUSE ..........$24,500.00ALL MACHINE/EQUIPMENT ARE SUBJECT TO PRIOR SELL

Posted in Cincinnati, OH, Business for Sale
From ebay.com - 1 month ago
