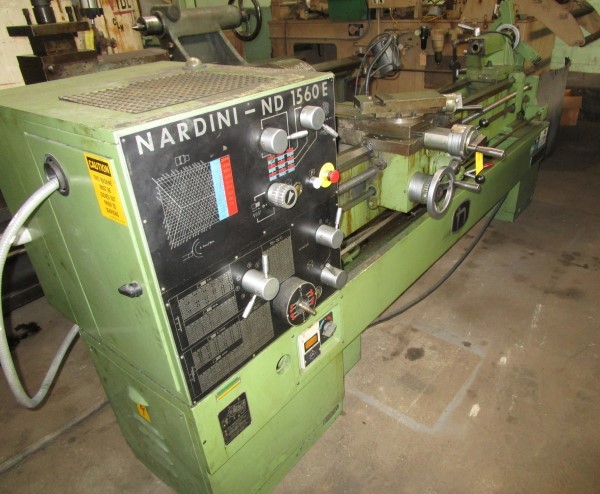

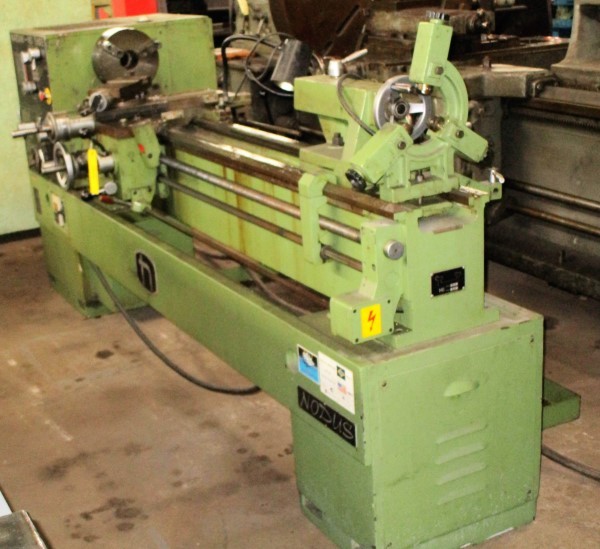

15/22.8" x 60" NARDINI "NODUS ND1560E" GAP-TYPE ENGINE LATHE w/TAPER- #TW321 - $6,950 - (Cincinnati, OH)

15"/22.8" x 60" NARDINI "NODUS" HIGH PRECISION TW321 GAP-TYPE ENGINE LATHE WITH TAPER ATTACHMENTSerial No 1.1/2.2012.410 530, Model ND1560E, Series "E" EQUIPPED WITH:Taper Attachment - 10" 3-Jaw Chuck w/Jaws 12" 4-Jaw Chuck - (2) Follow RestInduction Hardened & Ground Bed WaysUniversal Gear Box (U.S. and Metric Threads) CATALOG SPECIFICATIONS:Hole Thru Spindle2.03"Swing Over Bed Ways, Rated15"Swing Over Bed Ways, Actual15.3"Swing Thru Gap 22.8"Swing Over Saddle Wings13.375"Swing Over Cross-Slide8.625"Distance Between Centers60"Cross-Slide Cross-Feed Travel9.75"Top-Slide Travel5"Tailstock, Spindle Diameter2.375"Tailstock, Spindle Travel8.625"Tailstock, Spindle Taper#4 MT(18) Spindle Speeds, Range25 to 2000 RPM(132) Carriage Long Feeds.0021 to .0976 IPR(132) Cross-Slide Cross Feeds.001 to .0488 IPR(54) U.S. Thread Changes, Range2.75 to 42 TPI(54) Metric Thread Changes, Range.4 to 18.4(54) Modul Threads, Range.2 to 3.5(54) Diametral Pitch Threads3 to 84Main Motor, Horsepower8/5 HPOverall Dimension, L x W118" x 40"Weight, Approximately3000 LBS PRICE: F.O.B. OUR WAREHOUSE$6,950.00ALL MACHINE/EQUIPMENT ARE SUBJECT TO PRIOR SELL
