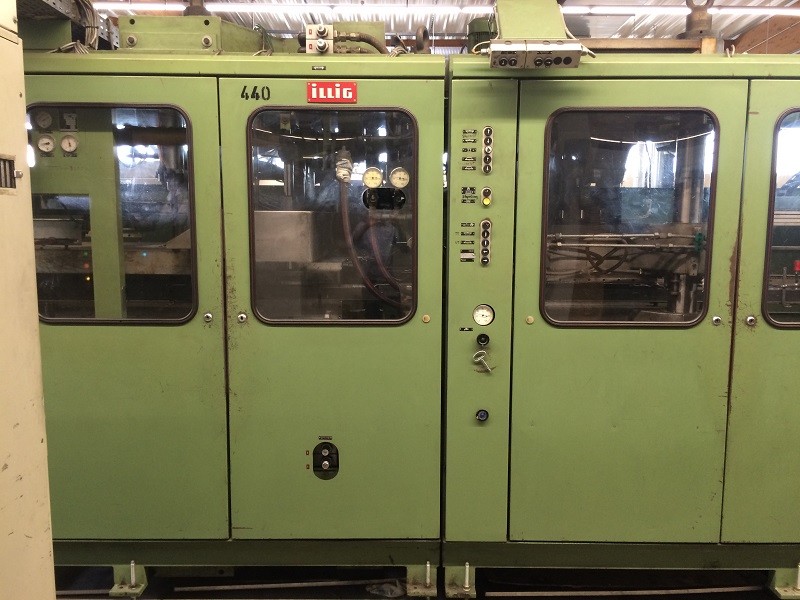

(1989) ILLIG RDKP 72d 4 Stations Thermoforming Machine - $81,500 - (Miami, FL)
ETI#1315 (1989) Thermoformer ILLIG RDKP 72d 4 Stations Brand: ILLIG Model: RDKP 72d Year: 1989 ( November) 4 stations: Form, Punch, Cut and Stack. Technical data RDKP72d Forming Machine Max. Mold surface mm 680 X 500 Max. Draw depth positive / negative mm 100 Max. Film width mm 720 Max. Feed length mm 530 El. Connection value of upper heating kW 23,1 El. Sub-heating kW 23,1 El. Total connection value with upper and lower heating kW 49 Total air consumption per cycle at 6 bar (basic machine) I 280 Heat to be removed (upper heating) kJ / h 25365 Heat to be drained (top and bottom heating) kJ / h 50730 Max. Number of cycles min-I 25 Long with reel seat mm 5600 Width without control cabinet mm 2650 Height mm 2200 Weight approx. Kg 3300 Steel Punch DSB72d Max. Punching area mm 700 X 550 Max. Punching pressure daN 60000 Max. Drawn part height positive / negative with movable lower table mm 100/50 Max. Drawn part height positive / negative with fixed undercounter mm 100/0 Total air consumption per cycle at 6 bar u. Max. Hub (basic machine) moving Undercounter I 102/122 Max. Number of cycles min-1 25 Long mm 3500 Width mm 1500 Height mm 2850 Weight approx. Kg 3750 Standard color ILLIG-GREEN RAL 6011 RS 75b ILLIG grinder Control Cabinet Can be inspected in dry cycle against additional cost. Price Ex-works Europe …. 69,000 Euro (As is in running condition) *we will help you with all shipping and handling coordination* Call if you don't find the machine that you are looking. Octavio Garcia7864623337 Whatsapp7863064597
