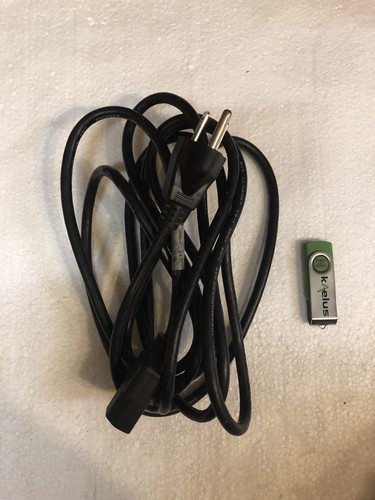

Kaelus IQA-1921C PIM Analyzer, TX Frequency 1930-1990, 2110-2155 MHz Accessories - $8,885 - (Neenah, WI)

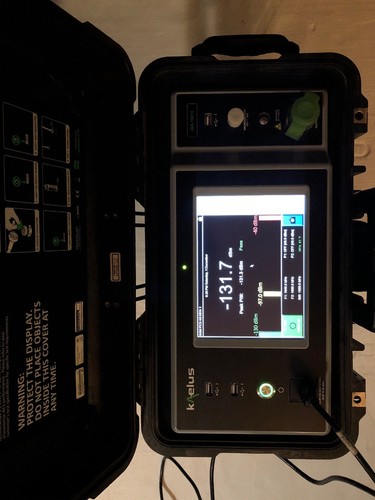

WE SHIP ANYWHERE IN THE WORLD YOU MAY SEND US A MESSAGE OR REACH TROY USA+01 920-419-3898 FOR ACCURATE QUOTES OR TO DOUBLE CHECK SHIPPING QUOTES THAT ARE BEING DISPLAYED ARE THE BEST AVAILABLE. ALSO Kaelus iQA-0850c Test Set.The iQA series Passive Intermodulation (PIM) analyzer is a feature rich, high power PIM test solution. This field proven analyzer enables network operators to improve site performance by finding and eliminating sources of passive intermodulation at the cell site. The design includes an integrated panel PC with intuitive touch screen interface for performing tests and generating site reports. This version of the iQA ships from the factory enabled to support Range to Fault (RTF) technology: with the purchase of an optional RTF module, operators are able to activate RTF mode within the iQA user software to accurately measure the distance to return loss faults as well as the distance to PIM faults at the cell site. RTF module sold separately - Rugged, reliable construction suitable for field use - Fully configurable frequencies, powers and IM products - Integrated polycarbonate transit case - Simple to operate touch screen interface - Range to Fault (RTF) enabled - Spectrum monitor, frequency sweep and time trace modes iQA-1921C Dual band PCS/AWS TX RANGE 1930-1990MHz/2110-2155MHz RX RANGE 1710-1755MHz/1850-1910MHz MODULE: RTF-2000A TECHNICAL SPECIFICATIONS | SYSTEMMeasurement method Reverse (reflected) PIM, 3rd, 5th, 7th, 9th and 11th order Residual PIM < -115dBm/-158dBc max (<-125dBm/-168dBc typ) (x2 @ 20W) User interface ports 3x USB, x1 LAN, 1x RF output (7-16 DIN female), 1x monitor port (N female) Display 8.4in (213mm) touch screen displayTRANSMITTER Frequency increment 50 kHz Frequency accuracy ± 5ppm (max), aging ± 1ppm (max) after first year Power per tone (adjustable) 2x 2 to 20W (+33 to +43dBm) Power accuracy (per tone) ± 0.5dB (max)RECIEVER Receive band (50kHz steps) Measurement noise floor < -128dBm Measurement range -50dBm to -12…
