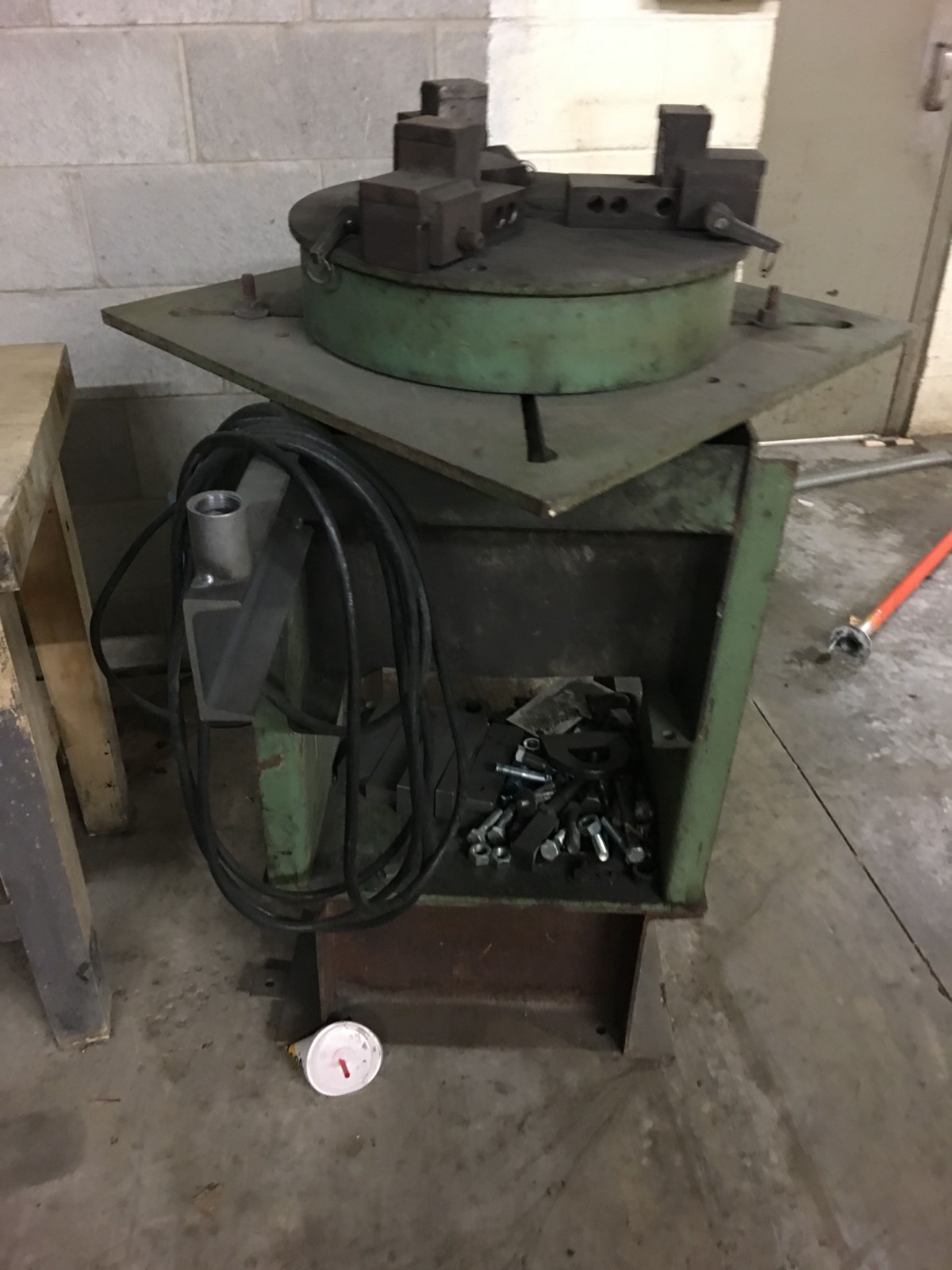

Pandjiris 1250 LB Weld Positioner - Up to 5" - $2,500 - (Troy, OH)

The Beta 12.5-5 Positioner has a motorized variable speed rotation with Forward-Stop-Reverse switch with dynamic braking. The rotation speed is variable from 0.06 to 1.82 RPM with pinned tilt through 90 degrees pinned at 15 degree increments. A 24" square table is standard. The wiring conforms to National Electrical Code Standards and operates on 115 volt, single phase, 60 cycle input power, draws 10 Amps. A field changeable plug-in hand pendant includes "Forward-Stop-Reverse-W eld/Rapid" buttons and a speed adjustment potentiometer on 25' of cable as standard. Load capacity ..................................... 1,250 lb. 5 inch overhung from face of table, 1,250 lb. 5 inch eccentricity.Tilt range ............................................ 0 through 90 degrees, pinned.Swing radius ...................................... 28" @ 90° tilt.Rotation torque................................... 6,250 inch pound.Rotational motor size ........................ 1/2 H.P. motor.Rotation speed .................................. Variable from 0.06 to 1.82 RPM. The Model TS-12.5 Companion Idler Tailstock includes a hand tilt through 90 degrees pinned at 15 degree increments. This serves as an ideal turn table with a 1,250 lb. capacity.
