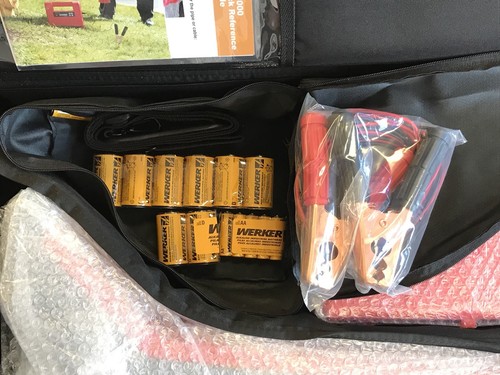

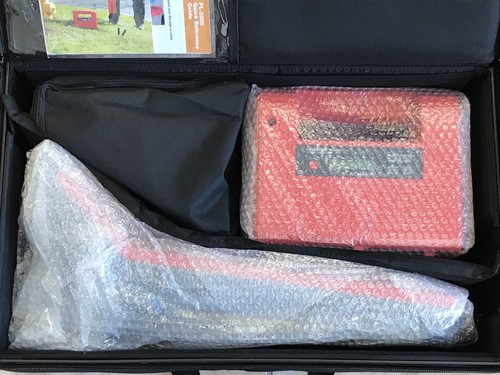

NEW SubSurface Instruments PL-2000 Pipe and Cable Locator - Free Shipping - $3,000 - (Irwin, PA)
Selling SubSurface Instruments PL-2000 Durable Utility Pipe and Cable LocatorBrand New, Never Used Free Priority Shipping Technical SpecificationsTransmitter SpecificationsSize:11.0 in x 9.5 in x 4.1 in (29.9 cm x 24.1 cm x 10.4 cm)Weight:5.5 lbs (2.5 kg)Input Power:DC 12 volts (Eight (8) "D" size batteries or external 12v battery)Battery Life:˜ 20 Hours Typical(Alkaline)˜ 8 Hours at Max PowerOperating Temperature:14° to 122° F (-10° to 50° C)Frequency:26.725 kHz, 8.125 kHz, and 512 HzOutput Power:0.5 watts Inductive mode3.0 watts Direct modeTransmitting Mode:Continuous Wave (non-modulating)Antenna:Single-CoilDepth Accuracy:Up to 16 FeetWarranty:3 YearsReceiver SpecificationsSize:5.2 in x 11.0 in x 24.0 in (13.2 cm x 27.9 cm x 61.0 cm)Weight:4.4 lbs (2.0 kg)Power Supply:DC 9 Volts (six (6) "AA" batteries)Battery Life:˜ 8 Hours Continuous (Alkaline)Operating Temperature:14° to 122° F (-10° to 50° C)Frequency Display:26.725 kHz, 8.125 kHz or .512 Hz"Radio" Mode: 15 kHz - 25 kHz"Live Cable" Mode: 50/60 Hz ACOperating Modes:"Peak", "Null", "Dist", and "Sonde"Sensitivity:0 to 40Warranty:3 YearsKey FeaturesPL-2000 transmitter has 3.0 watts power output in the Direct Connection mode; allowing locates for much longer distances. The lightweight, balanced receiver offers four different operating modes "Peak" mode - for the most accurate locates and for depth measurement "Null" mode - for fast, easy tracking (also indicates "left" or "right") "Dist" mode - for even longer distances - up to 50 percent farther "Sonde" mode - for locating sewer Sondes and measuring their depths. Any 512 Hz/8 kHz will be detected. Three "active" frequencies at a nominal 0.5 kHz, 8 kHz and 27 kHz, plus two "passive" frequencies - the 50/60 power and radio passive Select the "Mix" mode at the transmitter and transmit all active frequencies simultaneously in the "Direct Connect" mode Detects and reports "poor ground" conductivity at the transmitter in Direct Connection Current measureme…
