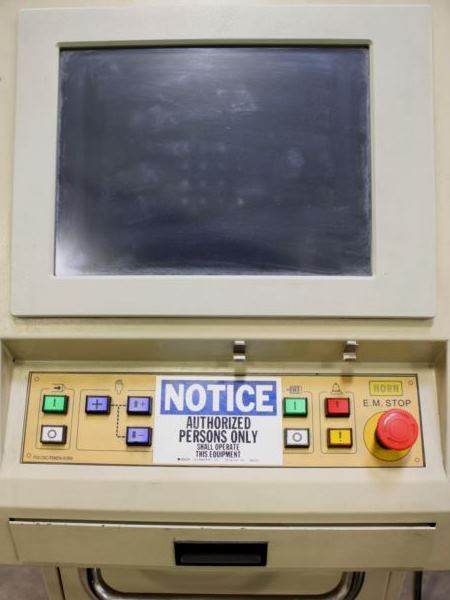

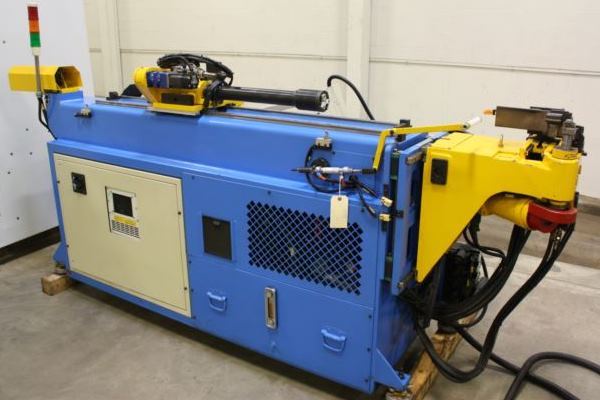

3/4? Horn CNC18TDRE CNC Pipe & Tube Bender - LMC #44423 - $41,870 - (Lincolnshire, IL)
3/4? Horn CNC18TDRE CNC Pipe & Tube Bender New - 2006 Serial No. 060715 (Bender 340) LMC #44423 SPECIFICATIONS:Pipe OD - Maximum................................0.7" x 0.063" (18 x 1.6 mm)Pipe OD for Repeat Feeding - Maximum...........................0.79" (20 mm)Round Tube - Non-Ferrous..........................0.79" x 0.079" (20 x 2 mm)Round Tube - Stainless...........................0.7" x 0.032" (18 x 0.8 mm)Square Tube - Mild Steel........................0.59" x 0.047" (15 x 1.2 mm)Round Bar - Mild Steel.........................................0.315" (8 mm)Feeding Speed..........................................79 IPS (2000 mm/sec.)Rotation Speed.................................................320 Deg./sec.Accuracy Repeatability..........................................+/-0.01 Deg.Bending Radius - Maximum..........................0.39" - 3.15" (10 - 80 mm)Bending Angle - Maximum.............................................190 Deg.Difference between Two Radii - Maximum.........................1.18" (30 mm)Length over Mandrel - Maximum..................................47" (1200 mm)Working Height.................................................43" (1100 mm)Tooling Center Line Height.....................................0.87" (22 mm)DOB Speed......................................................226 Deg./sec.Machine Dimensions - Actual....................112"(L-R) x 32"(F-B) x 59"(H)Control Dimensions - Actual.....................21"(L-R) x 24"(F-B) x 60"(H)Weight - Catalog..................................................1,980 Lbs. EQUIPPED WITH:Programmable Touch Screen Control on Pedestal w/E-stopDual Stack Tooling Mount2-Axis Tool Shift (Head Shift)Servo Driven Bend-arm (C-Axis), Carriage (Y-Axis), & Collet (B-Axis)Hydraulic Clamp Die, Pressure Die, & Collet GripAutomatic Mandrel LubricationAnticipated Mandrel Retraction UnitEthernet & USB PortsOperators Manual and Technical Documentation *Catalog Specifications Subject to Verification All sales are "As-Is", F.O…
