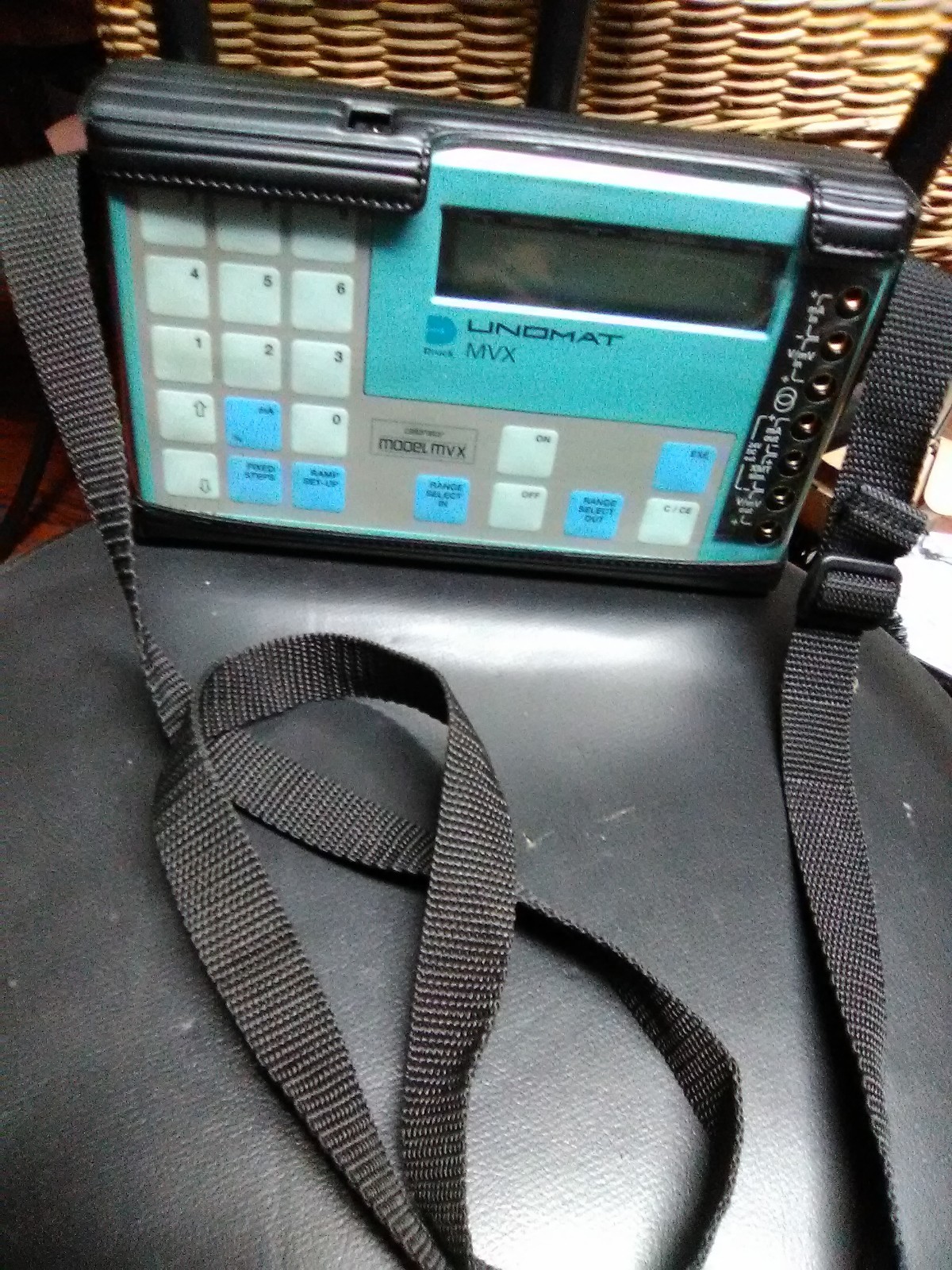

DRUCK UNOMAT MVX PROCESS SIGNAL MULTI CALIBRATOR WITH CARRYING CASE - $800 - (Princeton, IN)
Druck unomat MVX process signal multicalibrator with carrying case. Unit • Sources and reads millivolts,volts and milliamps • Powers, reads and simulates2-wire transmitters • Simultaneous input and outputreadings- • Fixed calibration steps • Automatic signal ramping SPECIFICATIONSFunction Range Resolution Accuracy % of reading Remarks Measure mVolts 0-120mV 0.01 mV ± 0.017% ± 1 digit R-input =20 M?Output mVolts 0-120mV 0.01mV ± 0.017% ± 1 digit R-output 0,2? Measure Volts 0-120V 0.01V ± 0.04% ± 1 digit R-input 1 M? Output Volts 0-12V 0.001V ± 0.017% ± 1 digit R-output 0,2 ? Measure mA 0-52mA 0.01mA ± 0.04% ± 1 digit R-input 3,5 ? fused Output mA 0-24mA 0.01mA ± 0.04% ± 1 digit R-max. 900 ? Transmitter Sim. 0-24mA 0.01mA ± 0.04% ± 1 digit V-max ext. 56 VoltsSpecial Functions 1. Fixed steps (programmable, 10% or 20% divisions)2. Signal ramping (up/dwell/down)Reference 22°C ± 1
